Automated case erecting

Automated case erection is the perfect start to increase efficiency, quality and ergonomics within your end-of-Line packaging process.

The Form’it!™ Case range offers automatic equipment, enabling a perfect start into the world of automated packaging. Machines are available to process a wide range of boxes, and can be supplied with single or multiple magazines (up to 4) – also able to process boxes with different footprints.

Our solution

Simple to install, easy to use

Form'it Case Erector

The solution of choice for distribution centers worldwide

Form’it! Case is used across a wide range of industries including consumer goods, beauty and healthcare, office supplies, graphic arts, electrical/electronics, and tools & hardware.

Form'it Case Erector

Specifications

TECHNICAL DATA

  • Form’it! Case machine is available in 3 sizes (1000, 2000, 3000 and with single or multiple magazines (up to 4)
  • Ergonomic and motorized ‘walk in’ magazine
  • Spring-loaded transportation belts to keep cases precisely aligned at 90 degrees
  • Up to 4 magazines, allowing up to 4 different simultaneous case sizes
  • Utilities
    • Electrical supply: 3 x 400V – 50 Hz. – N-PE
    • Power consumption: ca. 5 kW (HM)
    • Air supply: 6 bars
  • Magazine length: 1340 mm – 523/4” (can be extended to 2090 mm – 821/4” as an option)
  • Operator interface: full color touch screen
  • Data exchange with potential free contacts (Profinet as an option)
  • Hotmelt applicator: Robatech (Nordson available as an option)
  • Standard outfeed height: 600 ± 30 mm \ 23 5/8” ± 1 1/8” (other heights available on demand)
  • Form’it! 1000 HM
    • Machine dimensions:
      • 2307 x 2615 x 2160 mm
    • Carton dimensions:
      • Minimum size (outside): 200 x 150 x 150 mm
      • Maximum size (outside): 500 x 325 x 445 mm
  • Form’it! 2000 THM
    • Machine dimensions:
      • 2512 x 2955 x 2247 mm
    • Carton dimensions:
      • Minimum size (outside): 200 x 150 x 150 mm
      • Maximum size (outside): 620 x 450 x 575 mm
  • Form’it! 3000 THM
    • Machine dimensions:
      • 3075 x 2766 x 2375 mm
    • Carton dimensions:
      • Minimum size (outside): 350 x 275 x 300 mm
      • Maximum size (outside): 800 x 600 x 775 mm
Show More + Show Less –

Multi-footprint

Erect boxes with up to 4 different footprints and / or height at a single machine.

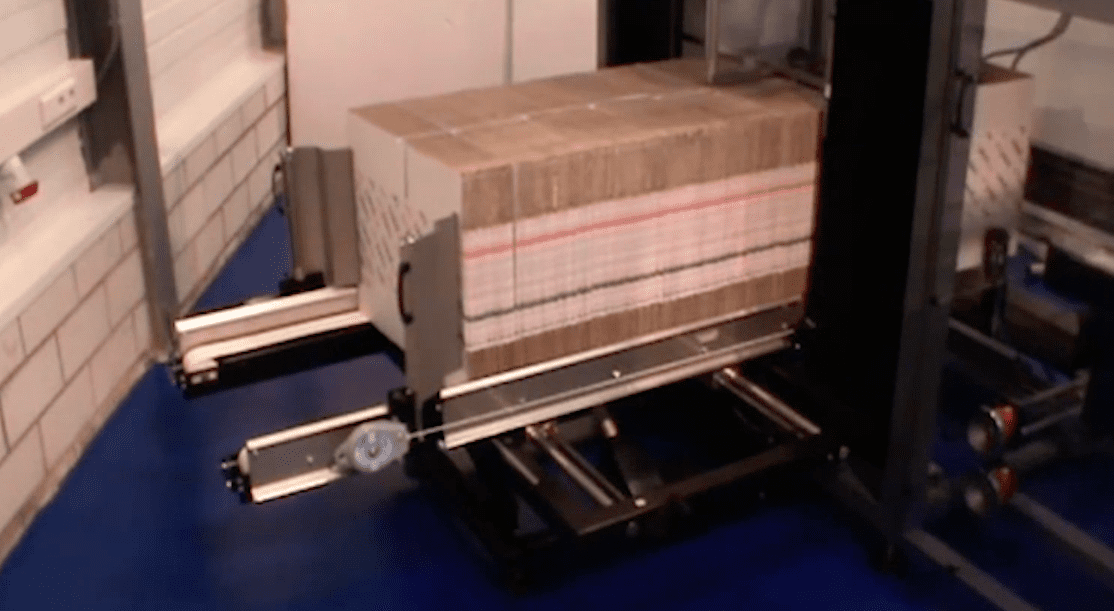

Easy to use blank magazine

“Walk-in” magazine for easy loading. Conveyor belts transport blanks step by step towards the pick-up section.

Easily adjustable system

Form’it! Case is easy to adjust into another box size within the machine’s range.

Added value

Lower total cost of ownership

Pack faster, with lower labor costs and less temporary work. Reduce the number of pallets stored, wrapped and shipped.

Improve environmental footprint

Lower the amount of corrugated needed. Reduce unnecessary voids in each parcel, and use fewer trucks.

Improve customer experience

Improve product protection and offer an outstanding unpacking experience to end-customers, for improved brand-loyalty.
