Cut’it!™ EVO

Smaller boxes and automatic lid application

Cut’it! EVO offers integrated height reduction technology which automatically adapts the height of a box to the highest point of filling, preventing an unnecessary void. This allows more packages per pallet for improved logistics. You will see faster and leaner operations, cost savings on packaging materials, and a lower carbon footprint.

Products are first placed into a standard carton with a standardized footprint size. The Cut’it!™ EVO machine detects the maximum height taken up by the carton’s contents, and cuts the edges of the carton automatically, removing excess material to ensure a good match and creating flaps at the top. It folds the flaps over the products ready for shipping, and finally applies and glues a lid onto the folded flaps. The machine is controlled via a user-friendly touchscreen, and a long ergonomic walk-in magazine can be filled without pausing the machine. A capacity of 900 boxes per hour, and simple adjustments for changing requirements, make Cut’it!™ EVO an outstanding resource for high-throughput lines.

test

High throughput

Packs up to 900 boxes/hour for very high packing throughput, especially during periods of peak demand.

Flexible

Three machine size options (S, M, L), with each version easily adjusted to match evolving requirements on the line.

Small footprint

Cut’it!™ EVO has a small footprint, and integrates easily into any logistic environment.

Low maintenance

Large doors offer easy access for cleaning and repair, and remote diagnostics facilitate maintenance.

Our Solution in Action

Simple to Install, Easy to Use

Your benefits

Cost efficient

Higher throughput with less labor – Cut’it! EVO improves productivity during regular operation and also handles most peak demand easily with far fewer temps. Additional cost savings come from using less void fill packaging material and from transporting smaller parcels.

Sustainable

No more shipping air – smaller boxes use far less additional void fill material, making a positive impact on the environ-ment. Because shipping volume drops, there are also fewer trucks on the road.

Highly protective

A glued lid on a height-reduced box means stronger, tamper-proof packages. Custom lid design allows boxes to be easily opened, and also reliably closed for better protection during returned shipments.

Innovative and easy to operate

A user friendly 12-inch HMI screen and large transparent sliding doors allow operators to monitor the machine while running, and provide easy access for maintenance. An integrated connectivity module (IIoT) enables remote tech support, complete with integrated camera system and KPI data reporting.

The solution of choice for distribution centers worldwide.

Cut’it!™ EVO is used across a wide range of industries including consumer goods, beauty and healthcare, office supplies, graphic arts, electrical/electronics, and tools and hardware.

E-commerce Businesses
Large Logistic Operations
3rd-Party Logisticians

Specifications

TECHNICAL DATA

Automatic height reduction to box contents

up to 25mm with “S” frame

up to 55mm with “M” and “L” frame

Standard long ergonomic magazine (walk in) – can be filled in without stopping the machine
Blanks transfer to pickup frame via motorized belts
Picking with suction cups ensures precise positioning on the box
Capacity: up to 15 cpm = 900/hour
Most movements servo-guided
4 lid flaps glued with full glue lines
Interface: intuitive touchscreen panel
Easy, fast and inexpensive size adjustments
Power : 3×380 (400) VAC 60Hz
Consumption: 10kW
Compressed air requested pressure: 6 bars
Consumption: 80 nl/cycle

Show More + Show Less –

Download Spec Sheet

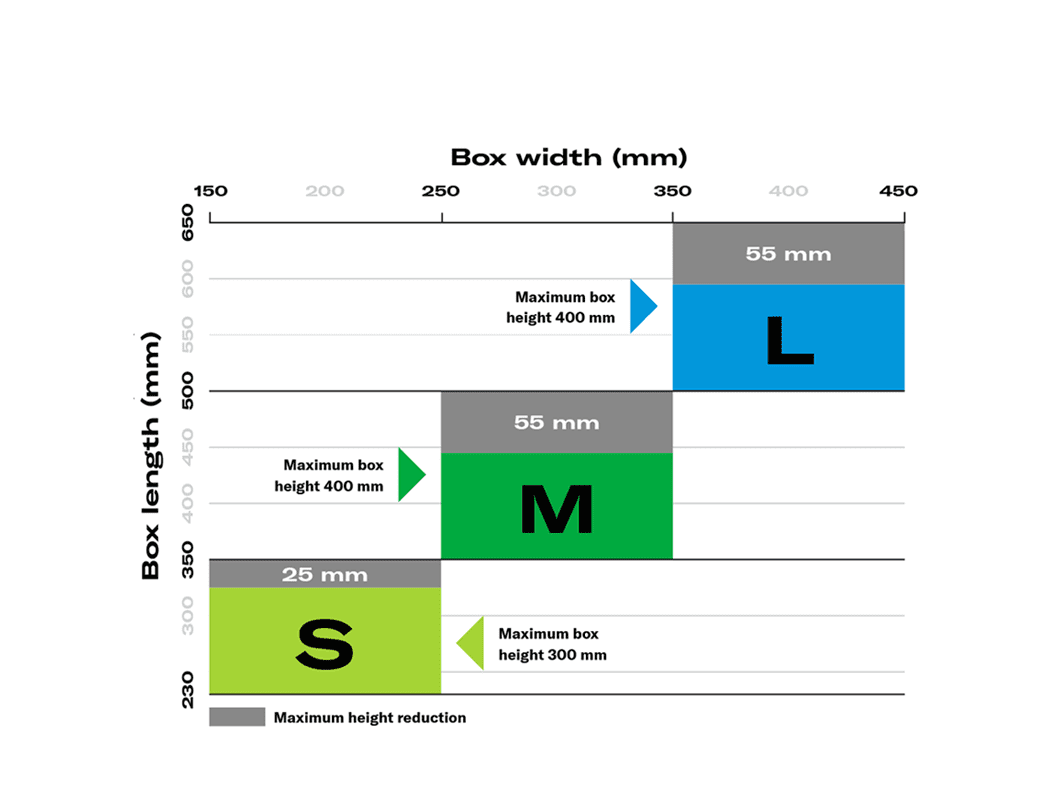

Sizing that fits your needs.

The Cut’it!™ EVO machine is available in 3 standard frames: Small, Medium and Large. Within the limits (mini/maxi footprint) of its frame, a machine can easily be adapted to another footprint after a while.

Solutions for production storage.

Lid blanks are stored in a magazine which can be loaded without stopping production. Placed at a very ergonomic height, motorized and horizontal, this magazine has a standard length of 1750 mm, which offers high autonomy. Lids are extracted from the magazine with dedicated piloted suction cups.

Innovative touch screen display.

The operator interface is a color touch screen. Parallel to the basic operations, this display allows visualizing the machine, the state of the various stations and, if needed, guides the operator solving a problem by indicating the necessary actions to do step by step.

Added Value

We have extensive experience in automation

Our 20-year expertise in automation equipment allows us to quickly understand your own packing environment, and adapt to your specific requirements. We walk the talk!

We are closer to you

We have people in all countries where we operate, speaking your language. And when you need support, our engineers are usually at your location in less than 24 hours.

Flexibility is our DNA

Our solutions have been designed to respond to your changing needs. Cut’it!™ EVO can reduce your carton height to an impressive minimum. It is scalable and adapts to new carton footprints, patterns and qualities.
